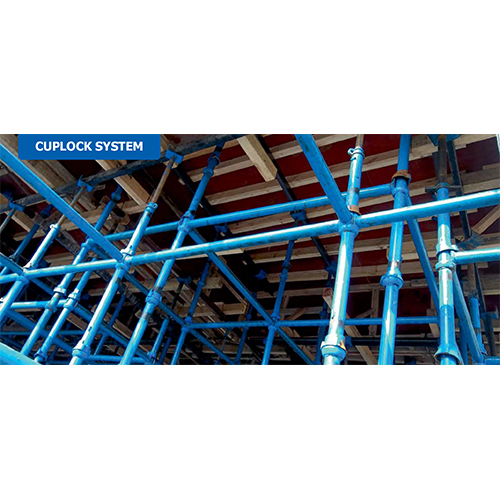

Send InquiryCuplock System
MOQ : 100 Square Foots
Cuplock System Specification
- Technique
- Forged
- Material
- Steel
- Length
- 10-15 Foot (ft)
- Surface Treatment
- Hot Dip Galvanized
- Application
- Construction
Cuplock System Trade Information
- Minimum Order Quantity
- 100 Square Foots
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 5000 Square Foots Per Month
- Delivery Time
- 2-10 Days
- Main Domestic Market
- All India
About Cuplock System
The Cuplock System is a versatile, modular steel scaffolding system known for its unique cup-and-cone locking mechanism that allows quick, secure connections between vertical standards and horizontal ledgers, forming stable structures for access, formwork support, and shoring in construction. It uses fixed bottom cups and slidable top cups on vertical standards, enabling up to four components to connect at one node with a hammer tap, making assembly fast and reducing loose parts, ideal for complex projects and heavy loads.
Key Components
- Vertical Standards (Standards): The main vertical supports with cups at set intervals (e.g., 0.5m).
- Horizontal Ledgers (Ledgers): Horizontal members with forged blade ends that fit into the cups.
- Diagonal Braces: Provide lateral stability, connecting to standards via swivel blades or clamps.
- Base Jacks & U-Heads: Adjustable jacks for leveling and U-heads/forks for supporting beams (like primary/secondary beams in formwork).
How It Works (Locking Mechanism)
- Connection: Horizontal ledgers slot into the fixed bottom cups and the slidable top cups of vertical standards.
- Locking: A hammer strike on the top cup locks the ledger blade securely, creating a rigid joint.
- Node Point: Each node point can accommodate up to four ledger connections (two horizontal, two diagonal) for strong, multi-directional support.
Key Features & Benefits
- Rapid Assembly: Fast erection and dismantling due to its simple locking mechanism.
- High Load Capacity: Robust design for heavy-duty applications like shoring and formwork support.
- Versatility: Used for general access, slab/beam formwork support, and shoring in various projects.
- Durability: Made from high-strength steel, often galvanized for corrosion resistance.
- Safety: Minimizes loose components, reducing hazards, and provides stable structures.
-
